5.2. 软件包元信息

The Debian package is not only an archive of files intended for installation. It is part of a larger whole and describes its relationship with other Debian packages (requisites, dependencies, conflicts, suggestions). It also provides scripts that enable the execution of commands at different stages in the package's lifecycle (installation, upgrade, removal). These data are used by the package management tools, but are not part of the packaged software; they are, within the package, what is called its “meta-information” - information about other information.

5.2.1. 描述:control 文件

本文件使用的结构与email头相似(如由 RFC 2822 定义的),并且在 Debian 政策和手册页面deb-control(5)deb822(5) 中充分描述。
例如,对于 apt 软件包,control 文件看起来像这样:
$ apt-cache show apt
Package: apt
Version: 2.2.4
Installed-Size: 4337
Maintainer: APT Development Team <>
Architecture: amd64
Replaces: apt-transport-https (<< 1.5~alpha4~), apt-utils (<< 1.3~exp2~)
Provides: apt-transport-https (= 2.2.4)
Depends: adduser, gpgv | gpgv2 | gpgv1, libapt-pkg6.0 (>= 2.2.4), debian-archive-keyring, libc6 (>= 2.15), libgcc-s1 (>= 3.0), libgnutls30 (>= 3.7.0), libseccomp2 (>= 2.4.2), libstdc++6 (>= 9), libsystemd0
Recommends: ca-certificates
Suggests: apt-doc, aptitude | synaptic | wajig, dpkg-dev (>= 1.17.2), gnupg | gnupg2 | gnupg1, powermgmt-base
Breaks: apt-transport-https (<< 1.5~alpha4~), apt-utils (<< 1.3~exp2~), aptitude (<< 0.8.10)
Description-en: commandline package manager
 This package provides commandline tools for searching and
 managing as well as querying information about packages
 as a low-level access to all features of the libapt-pkg library.
 These include:
  * apt-get for retrieval of packages and information about them
    from authenticated sources and for installation, upgrade and
    removal of packages together with their dependencies
  * apt-cache for querying available information about installed
    as well as installable packages
  * apt-cdrom to use removable media as a source for packages
  * apt-config as an interface to the configuration settings
  * apt-key as an interface to manage authentication keys
Description-md5: 9fb97a88cb7383934ef963352b53b4a7
Tag: admin::package-management, devel::lang:ruby, hardware::storage,
 hardware::storage:cd, implemented-in::c++, implemented-in::perl,
 implemented-in::ruby, interface::commandline, network::client,
 protocol::ftp, protocol::http, protocol::ipv6, role::program,
 scope::application, scope::utility, suite::debian, use::downloading,
 use::organizing, use::playing, use::searching, works-with-format::html,
 works-with::audio, works-with::software:package, works-with::text
Section: admin
Priority: required
Filename: pool/main/a/apt/apt_2.2.4_amd64.deb
Size: 1491328
MD5sum: 24d53e8dd75095640a167f40476c0442
SHA256: 75f07c4965ff0813f26623a1164e162538f5e94defba6961347527ed71bc4f3d
Let us have a closer look at the purpose of some of the fields listed by the previous command. 依赖:Depends 字段

The dependencies are defined in the Depends field in the package header. It is a list of conditions to be met for the package to work correctly. This information is used by tools such as apt in order to install the required libraries, tools, drivers, etc., in appropriate versions fulfilling the dependencies of the package to be installed. For each dependency it is possible to restrict the range of versions that meet that condition. In other words, it is possible to express the fact that we need the package libc6 in a version equal to or greater than “2.15” (written “libc6 (>= 2.15)”). Version comparison operators are as follows:
  • <<:小于;
  • <=:小于或等于;
  • =:等于(注意, “2.6.1” 不等于 “2.6.1-1”);
  • >=:大于或等于;
  • >>:大于。
In a list of conditions to be met, the comma serves as a separator. It must be interpreted as a logical “and”. In conditions, the vertical bar (“|”) expresses a logical “or” (it is an inclusive “or”, not an exclusive “either/or”). Carrying greater priority than “and”, it can be used as many times as necessary. Thus, the dependency “(A or B) and C” is written A | B, C. In contrast, the expression “A or (B and C)” should be written as “(A or B) and (A or C)”, since the Depends field does not tolerate parentheses that change the order of priorities between the logical operators “or” and “and”. It would thus be written A | B, A | C.
The dependencies system is a good mechanism for guaranteeing the operation of a program, but it has another use with “meta-packages”. These are empty packages that only describe dependencies. They facilitate the installation of a consistent group of programs pre-selected by the meta-package maintainer; as such, apt install meta-package will automatically install all of these programs using the meta-package's dependencies. The gnome, kde-full and linux-image-amd64 packages are examples of meta-packages. 冲突:冲突字段

Conflicts(冲突) 字段指示不能与其共存的其它软件包。最常见的理由是两个软件包使用具有相同的名称和路径的文件,或在相同的 TCP 端口提供相同的服务,或会阻碍彼此的操作。
dpkg 不会安装冲突的软件包,除非新软件包指明 “取代” 被冲突的软件包,dpkg 才会以新的软件包取代旧的软件包。apt 总是遵循您的指示:若选择安装新软件包,则自动移除造成问题的旧软件包。 不相容性:中断字段

中断 Breaks 字段有一个影响和冲突字段类似,但它具有特殊的意义。它标志着一个包的安装会将另外一个包(或者是特定版本)中断掉。通常而言,两个包之间的不兼容是短暂的,中断关系会特别指出那些不兼容的版本。
已经中断现有软件包时,dpkg 将拒绝安装并且 apt 将更新软件包至新的版本试图解决此问题 (通常可解决此问题,并再度兼容)。
不向后兼容的更新可能会发生这种情况:如果新版本与旧版本的功能不在另一个程序中做特别规定,这将导致故障。中断字段会防止用户继续运行从而遇到这些问题。 提供项:Provides 字段

这个字段引入了一个很有意思的“虚拟包”的概念。它有很多的角色,但有两个特别重要。第一个是由使用虚拟包关联到的一个通用的服务(包“提供”了这些服务)。第二个表示一个包完全取代了另外一个,所以它也能满足依赖的要求。因此,可以创建一个替换而不必使用相同的包名称的包。 提供一个“服务”
让我们以范例详述第一个案子:postfixsendmail 之类的邮件服务器都 “提供” mail-transport-agent 虚拟软件包。因此需要启用该等服务的软件包 (如:smartlistsympa 之类的邮件列表管理器) 只要在其相依性里叙明需要 mail-transport-agent 而不是指明还不兼容的可能解决方案清单 (如 postfix | sendmail | exim4 | …)。更进一步来说,在同个机器安装两个邮件服务器是没有用的,因此每个软件包都声明与 mail-transport-agent 虚拟软件包冲突。系统忽略冲突的两个软件包,但技术上可以禁止同时安装两个邮件服务器。 和另一个软件包的可交互性
The Provides field is also interesting when the content of a package is included in a larger package. For example, the libdigest-md5-perl Perl module was an optional module in Perl 5.6, and has been integrated as standard in Perl 5.8 (and later versions, such as 5.32.1 present in Bullseye). As such, the package perl has since version 5.8 declared Provides: libdigest-md5-perl so that the dependencies on this package are met if the user has Perl 5.8 (or newer). The libdigest-md5-perl package itself has eventually been deleted, since it no longer had any purpose when old Perl versions were removed.

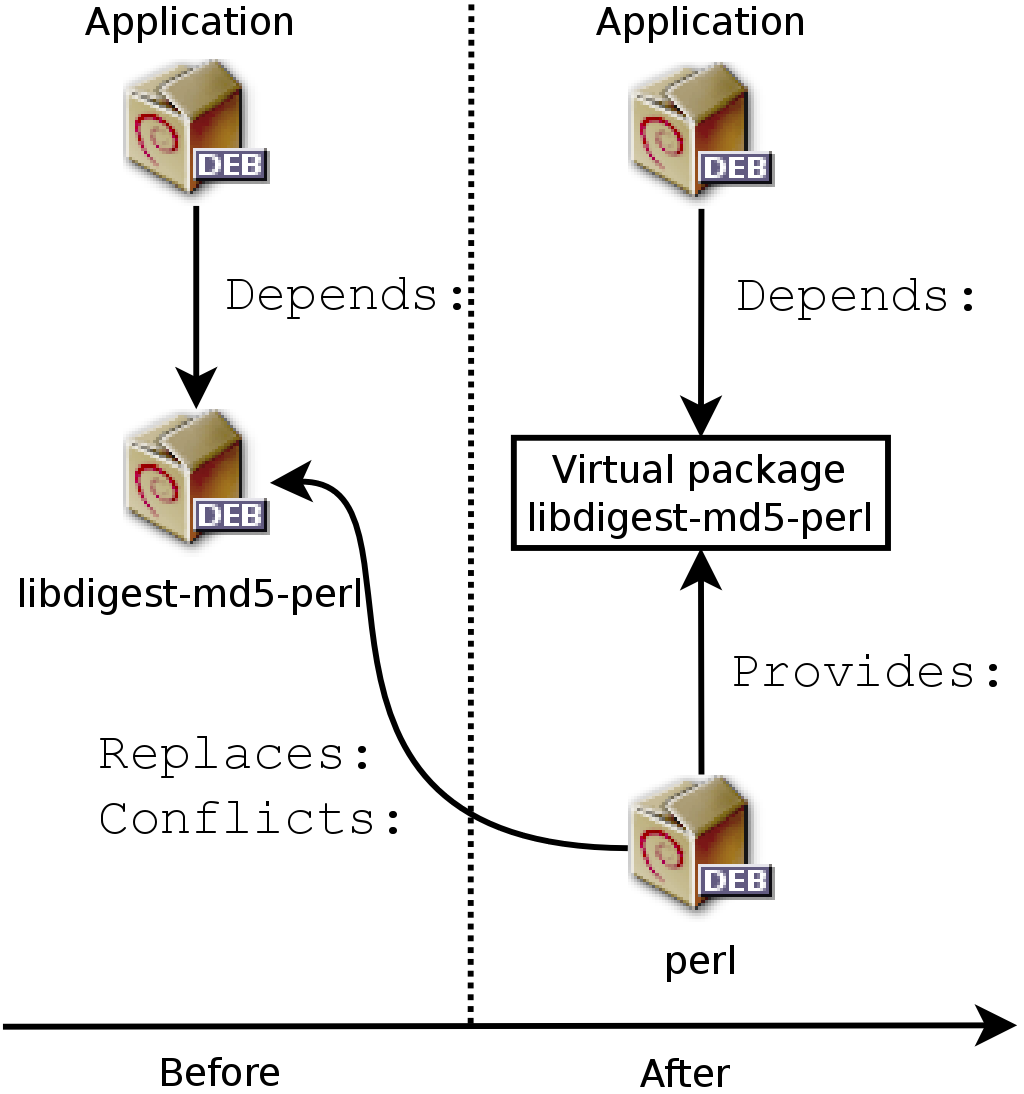

图 5.1. 使用了Provides字段来避免破坏依赖

这个功能非常有用,因为它是永远不可能预料到变化莫测的发展,它不能够调整重命名,或者其他自动替换过的软件,所以它是必要的。 过去的限制
Virtual packages used to suffer from some limitations, the most significant of which was the absence of a version number. To return to the previous example, a dependency such as Depends: libdigest-md5-perl (>= 1.6), despite the presence of Perl 5.10, would have never been considered as satisfied by the packaging system — while in fact it most likely was satisfied. Unaware of this, the package system chose the least risky option, assuming that the versions do not match.
This limitation has been lifted in dpkg 1.17.11, and is no longer relevant. Packages, like perl 5.32.1, can assign a version to the virtual packages they provide, such as Provides: libdigest-md5-perl (= 2.55.01), and thus allow other packages to use versioned dependencies. 替换文件:替换字段

The Replaces field indicates that the package contains files that are also present in another package, but that the package is legitimately entitled to replace them. Without this specification, dpkg fails to install the package, stating that it cannot overwrite the files of another package (technically, it is possible to force it to do so with the --force-overwrite option, but that is not considered standard operation). This allows identification of potential problems and requires the maintainer to study the matter prior to choosing whether to add such a field.

5.2.2. 配置脚本

In addition to the control file, the control.tar.gz archive for each Debian package may contain a number of scripts, called by dpkg at different stages in the processing of a package. The Debian Policy describes the possible cases in detail, specifying the scripts called and the arguments that they receive. These sequences may be complicated, since if one of the scripts fails, dpkg will try to return to a satisfactory state by canceling the installation or removal in progress (insofar as it is possible).
在一般情况下,preinst脚本会在安装软件包前执行,而postinst会稍后执行。同样,prerm会在移除一个软件包的之前被调用,postrm 则随后执行。更新软件包相当于是清除掉以前的旧版本并且安装新的软件包。所以在这里我们不可能来详细描述所有的可能的方案,但我们将讨论最常见的两种:安装/更新和移除。 安装和升级

During the initial installation and for each upgrade of a package, dpkg calls the so called maintainer scripts such as the prerm or preinst scripts. These scripts can perform additional actions during the different stages of a package's life-cycle. Script names preceded by new- are the scripts from the new version of a package being installed or upgraded to. Script names preceded by old- are the scripts from the old version of a package that is being upgraded from.
During each invocation dpkg will pass certain arguments to each script such as upgrade new-version. The invoked script can then either handle the arguments and perform a particular action, or ignore the arguments and return with an exit code of 0, if nothing needs to be done during that step. In practice many packages will not need to perform an action during every step in the life cycle. Thus a typical configuration script will check for a particular argument and ignore all other ones, implicitly returning with exit code 0.
Here is what happens during an installation (or an update). The old-version, new-version and last-version-configured arguments are placeholders for the actual (old and new) version numbers of the package:
  1. For an update, dpkg calls the old-prerm script and passes upgrade new-version as arguments.
  2. Still for an update, dpkg then executes the new-preinst script with the arguments upgrade old-version; for the initial installation, it executes the new-preinst script and passes install as argument. It may add the old version in the last parameter, if the package has already been installed and removed since (but not purged, and thus configuration files have been retained).
  3. 新的软件包文件被解压。如果文件已经存在,就被会替换,同时会产生一个临时的备份副本。
  4. For an update, dpkg executes the old-postrm script and passes upgrade new-version as arguments.
  5. dpkg更新所有的内部数据(文件列表,配置脚本等),并删除被替换文件的备份。这是一条不归路: ) dpkg将不能够再访问回退到之前状态所需要的所有元素。
  6. dpkg 将更新配置文件,无法自动管理此工作时,要求用户做决定。详情在此 第 5.2.3 节 “Checksums, List of Configuration Files, et al.”
  7. Finally, dpkg configures the package by executing the new-postinst script with the arguments configure last-version-configured. 软件包移除

The steps to remove a package are analogous to the installation steps. The main difference is that the removal scripts of the package are called:
  1. dpkg calls the prerm script and passes the remove argument.
  2. dpkg removes all of the package's files, with the exception of the configuration files and maintainer scripts.
  3. dpkg executes the postrm script and passes remove as argument. Afterwards, all of the maintainer scripts, except the postrm script, are removed. If the user has not used the “purge” option, the process stops here.
  4. For a complete purge of the package (command issued with dpkg --purge or dpkg -P), the configuration files are also deleted, as well as a certain number of copies (*.dpkg-tmp, *.dpkg-old, *.dpkg-new) and temporary files; dpkg then executes the postrm script and passes purge as argument.
config 脚本补充前述的 4 个脚本,软件包以 debconf 取得配置用的信息。安装过程中,此脚本以 debconf 指令询问用户详细的问题。把回应记录在 debconf 数据库供未来的参考。在安装之前先由 apt 逐一运行该等脚本,归纳问题与回答。事前与事后安装脚本可使用该等信息回应用户的期望。

5.2.3. Checksums, List of Configuration Files, et al.

In addition to the maintainer scripts and control data already mentioned in the previous sections, the control.tar.gz archive of a Debian package may contain other interesting files.
The first, md5sums, contains the MD5 checksums for all of the package's files. Its main advantage is that it allows dpkg --verify (which we will study in 第 节 “用dpkg --verify审计软件包”) and debsums (from the package of the same name; see 第 节 “审核软件包:debsums 及其限制”) to check if these files have been modified since their installation. Note that when this file doesn't exist, which might be the case for some older packages, dpkg will generate it dynamically at installation time (and store it in the dpkg database just like other control files).
The file conffiles lists package files that must be handled as configuration files (see also deb-conffiles(5)). Configuration files can be modified by the administrator, and dpkg will try to preserve those changes during a package update.
实际上,在这种情况下,dpkg 的行为会尽可能地智能:如果两个版本之间并没有改变标准的配置文件,那么它就什么也不会做。但是如果文件已经被修改,它会尝试更新此文件。这会产生两种可能的情况:一是管理员没有碰配置文件,在这种情况下 dpkg 会自动安装新的版本;二是文件已经被修改了,在这种情况下 dpkg 会询问管理员希望使用哪个版本(有过修改的旧版本,或者软件包的新版本)。为了帮助用户作出决定,dpkg 会提供显示 “diff”,这会显示两个版本之间的差异。如果用户选择旧版本,那么新版本将被存储在文件夹的同一个位置并以 .dpkg-dist 为后缀名的文件中。如果用户选择新版本,那么旧版本将被保留在以 .dpkg-old 为后缀名的文件中。另外一个可能的操作是由暂时中断 dpkg 来编辑该文件,并试图重新恢复相关的修改(之前用 diff 来识别)。
The control archive frequently contains other files as well, like triggers, shlibs, or symbols. These files are well described in deb-triggers(5), deb-shlibs(5), and deb-symbols(5).
Triggers were introduced to reduce the amount of duplicated events during package installation, such as file registration or catalog/database update tasks. Packages can define their own or activate defined triggers. A more comprehensive documentation can be found in /usr/share/doc/dpkg/triggers.txt.gz.
The shlibs system is an older and simpler alternative to the symbols system for declaring dependencies for shared libraries. It defines the package name and version in which to find a specific SONAME-version of a shared library. The newer symbols system allows to define the dependency by tracking the symbols and when they have been introduced or changed in the library instead.
